| FEATURES |
● UL safety approval.
● Smaller size at 16A switching capacity relay for high density.
● Surge strength:4500 VAC.
● 1 Form A (SPST-NO) contact.
● Nominal power 800mW.
● Operating power 450mW.
● PCB mounting technique.
● Selection of case material for high temperature and better chemical solution performance. |
|
|
|
|
 |
UL FILE NO:E169563
TUV FILE NO:
CE DECLARATION OF CONFORMITY
CQC FILE NO:
|
|
|
| ORDERING INFORMATION |
| 954 |
- |
1A |
- |
12 |
D |
MP |
- |
1 |
|
|
|
|
|
|
| 1 |
|
2 |
|
3 |
4 |
5 |
|
6 |
|
|
|
|
|
|
|
1 |
Model Number
954 |
2 |
Contact Arrangement
1A = 1 Form A (SPST-NO) |
3 |
Coil Voltage
3~60V |
4 |
Coil Type
D:DC |
5 |
Terminal Type
MP = Double Connect Type |
6 |
Type Of Install
1 = Install Style One
2 = Install Style Two
3 = Install Style Three
4 = Install Style Four
|
|
| |
| COIL RATINGS (at 20℃) |
COIL
TYPE |
Coil Nominal
Voltage (V) |
Coil
Resistance
(Ω+-10%) |
Pick-Up
Voltage (V)
<= |
Drop-Out
Voltage (V)
>= |
Nominal
Current
(mA) |
DC Standard Coils |
3 |
11 |
2.25 |
0.3 |
273 |
| 5 |
31 |
3.75 |
0.5 |
161 |
| 6 |
45 |
4.5 |
0.6 |
133 |
| 9 |
101 |
6.75 |
0.9 |
89 |
| 12 |
180 |
9 |
1.2 |
66.7 |
| 18 |
405 |
13.5 |
1.8 |
44.4 |
| 24 |
720 |
18 |
2.4 |
33.3 |
| 48 |
2880 |
36 |
4.8 |
16.7 |
| 60 |
4500 |
45 |
6 |
13.3 |
|
|
| * Max Continuous Voltage at 20℃:? 130% of Coil Nominal Voltage. |
CONTACT RATINGS |
| ●Contact Arrangement |
|
|
1 Form A (SPST-NO) |
●Max. Switching Power |
|
|
|
1 Form A (SPST-NO) |
4000VA 480W |
●Max. Switching Voltage |
|
|
1 Form A (SPST-NO) |
250VAC 30VDC |
● Max. Switching Current |
|
|
|
1 Form A (SPST-NO) |
16 A |
●Contact Resistance |
|
|
1 Form A (SPST-NO) |
<= 50 mΩ |
●Resistive Load |
|
|
|
1 Form A (SPST-NO) |
|
●Contact Material |
|
|
1 Form A (SPST-NO) |
Ag Alloy |
●Inductive Load |
|
|
1 Form A (SPST-NO) |
|
●Pilot Duty Load |
|
|
1 Form A (SPST-NO) |
|
●Rating Load |
|
|
1 Form A (SPST-NO) |
16A/250VAC 20A/125VAC 20A/24VDC |
●Tv Rating |
|
|
1 Form A (SPST-NO) |
|
●Remark |
|
|
1 Form A (SPST-NO) |
|
|
|
CHARACTERISTICS |
| ●Electrical Life |
100,000 |
●Mechanical Life |
5,000,000 |
●Initial Insulation Resistance |
Min. 100MΩ 500VDC |
●Contact Resistance (Initial) |
≤50mΩ |
●Operate Time |
≤20ms |
●Release Time |
≤10ms |
●Initial Dielectric Strength |
50/60Hz 1500VAC 1 min. (between open contacts)50/60Hz 4000VAC 1 min. (between contacts and coil)
|
● Vibration Resistance |
Malfunction: 10 to 55Hz at Double Amplitude of 1.5mm
Destructive: 10 to 55Hz at Double Amplitude of 1.5mm
|
●Shock Resistance |
Malfunction: 10G (11ms) / Destructive: 100G(6ms) |
●Ambient Temperature |
－25℃～＋70℃ |
| ●Relative Humidity |
85% at 40℃ |
| ●Unit Weight |
Approx. 17g |
| ●Remark |
|
|

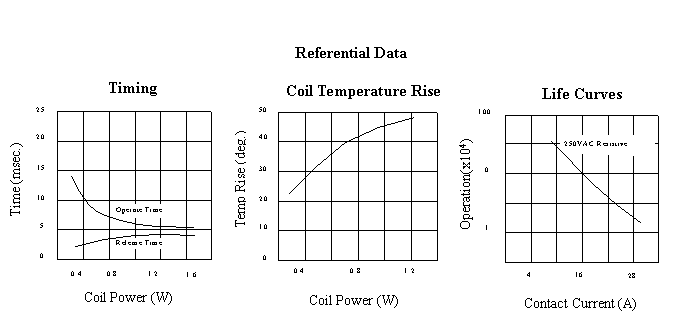

| Referential Data |
 |

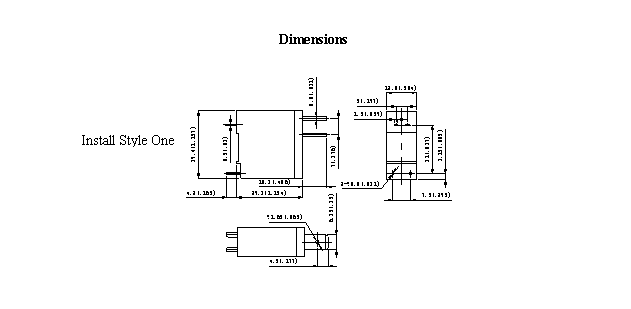

| OUTLINE DIMENSIONS |
 |

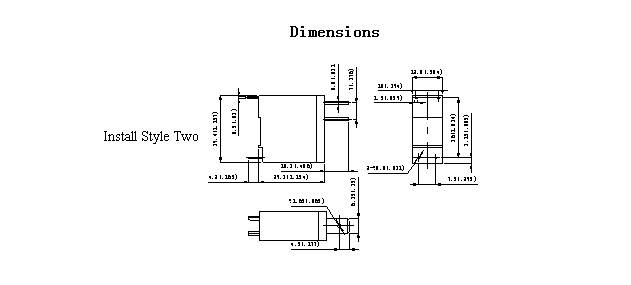

| OUTLINE DIMENSIONS |
 |

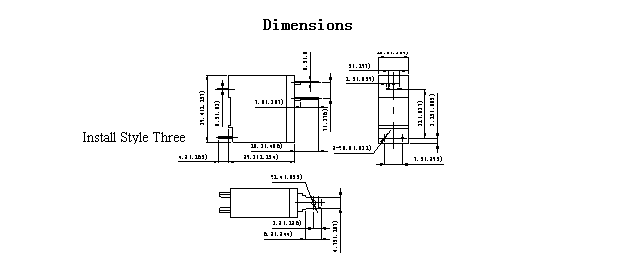

| OUTLINE DIMENSIONS |
 |

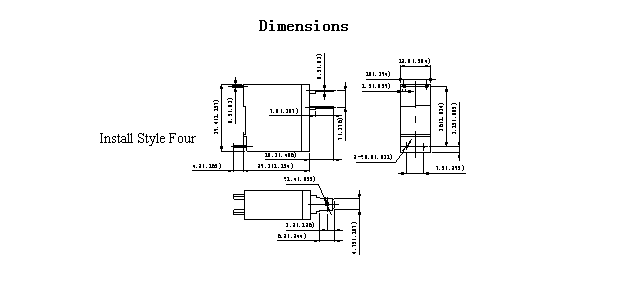

| OUTLINE DIMENSIONS |
 |

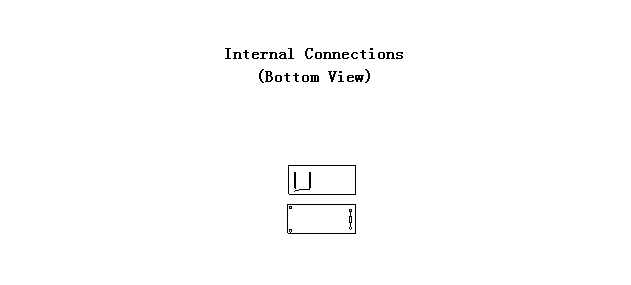

| Internal Connections |
 |

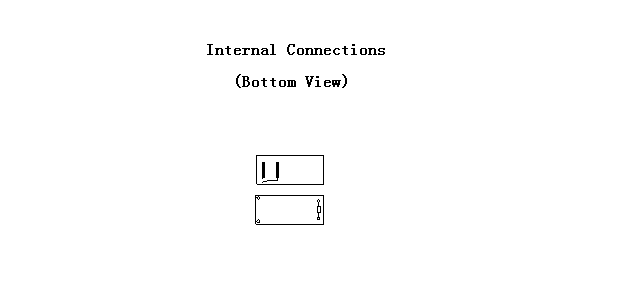

| Internal Connections |
 |

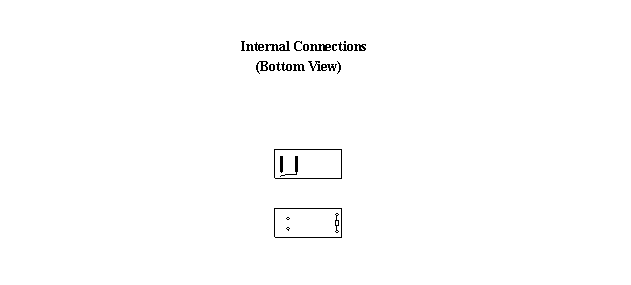

| Internal Connections |
 |
|
954 Series Relay.pdf Download  |
|
